How to Audit Internal Links at Scale for Large Sites

Running an internal link audit on a five-page brochure site is straightforward. Running one on a site with 50,000 pages, multiple subdomains, and thousands of redirect chains is a different challenge entirely. Most guides skip the hard parts: crawl budget constraints, automated processing pipelines, and how to prioritise fixes when you surface hundreds of thousands of issues at once.

This guide covers the full process, from selecting crawl infrastructure to measuring the traffic impact of every fix you make.

Why Audit Internal Links on Large Sites?

The scale of a site changes the stakes dramatically. On smaller sites, a few orphan pages are a minor inconvenience. On an enterprise site, structural link problems can suppress entire content categories from ranking, or prevent Googlebot from ever finding them in the first place.

That statistic reflects a structural problem as much as a content one. Pages that Google never crawls, or that sit too deep in a site's architecture, cannot rank regardless of their quality.

Impact on Crawl Budget and Rankings

Google allocates a crawl budget to every site based on server capacity and the perceived value of the content. For sites above 10,000 pages, this budget becomes a binding constraint.^[1] Googlebot will not crawl everything. It prioritises pages it expects to be useful, and internal links are one of the primary signals it uses to make that decision.

"Internal linking is super critical for SEO. It's one of the biggest things you can do on a website to guide Google and visitors to the pages you think are important."

John Mueller, Senior Search Analyst, Google

Gary Illyes from Google has been specific about how crawl budget works: it equals crawl rate multiplied by demand, and the host load your server allows is the ceiling.^[2] Every wasted crawl on a low-value page is a crawl not spent on something important. Redirect chains, broken internal links, and deeply buried pages all burn through that budget without delivering ranking benefit.

Step-by-Step Audit Process for Large Sites

The process breaks into four phases. Each builds on the last, and skipping any one of them leaves gaps in your analysis.

Step 1: Crawl at Scale

Standard desktop crawlers work fine up to around 50,000 URLs. Beyond that, you need to think about infrastructure. Three approaches work at enterprise scale:

Dedicated crawl tools: Screaming Frog (with the memory option enabled and crawl limits removed) can handle large sites if you run it on a server with sufficient RAM. For sites above 500,000 pages, Sitebulb or Botify offer cloud-based crawling that does not depend on local machine resources.

Linki: Linki's crawl infrastructure is built specifically for internal link analysis, processing link graphs and identifying structural issues without requiring manual export-and-import workflows. It surfaces orphans, chains, and depth issues in a single report rather than requiring you to cross-reference multiple tool exports.

Ahrefs Site Audit: Cloud-based crawling with configurable limits. The internal links report shows inlink counts, anchor text distribution, and depth for every crawled URL.^[3]

Whichever tool you use, configure the crawl to: respect robots.txt, exclude parameterised URLs that are canonicalised elsewhere, limit to the primary domain (or include subdomains explicitly if needed), and set a crawl rate that does not stress your server.

Step 2: Identify Issues

Once you have crawl data, the prioritisation work begins. Four issue types matter most on large sites:

Orphan pages are pages with no internal links pointing to them. Googlebot cannot discover them through crawling, and they receive no link equity at all. On large sites, orphan rates of 15-25% are common. Fixing them is often the highest-impact action available.

Broken internal links (links returning 4xx or 5xx codes) waste crawl budget and create a poor user experience. They also interrupt link equity flow at the point of the broken link.

Redirect chains are sequences of two or more redirects between the linking page and the final destination. Each hop in the chain reduces link equity passed and consumes crawl budget. The rule of thumb is to point all internal links directly to the final canonical URL.

Excessive crawl depth means pages that require more than three to four clicks from the homepage to reach. The traffic differential is stark: pages within three clicks receive nine times more organic traffic than those buried deeper in the architecture.

Step 3: Analyse Metrics

Raw issue counts are not enough. You need to understand the structural shape of your site's link graph to prioritise effectively.

In-degree (number of internal links pointing to a page) tells you how much link equity a page is accumulating. Pages with high in-degree and low organic traffic are worth investigating for content issues. Pages with low in-degree that rank for valuable keywords need more internal links to cement their position.

Out-degree (number of links leaving a page) indicates how much equity a page distributes. Pages with very high out-degree may be diluting their link equity across too many destinations.

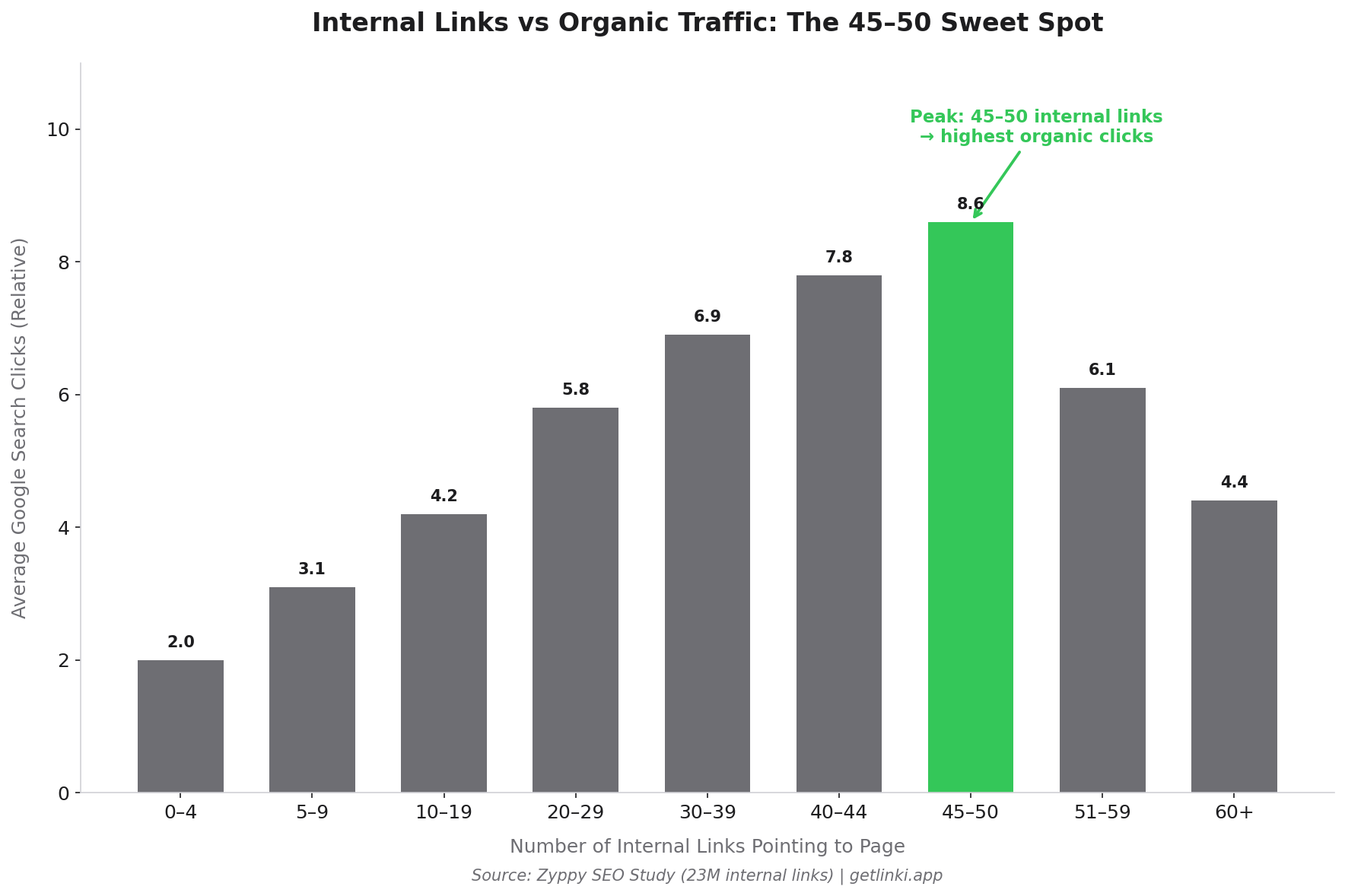

Research on 23 million internal links found that pages with 45-50 internal links pointing to them see the highest organic traffic. Beyond 50, traffic begins to decline as link equity becomes too diluted.^[4]

Anchor text distribution matters too. Martin Splitt from Google has been clear that anchor text should be descriptive and relevant to the target page, and that links should be properly formed HTML (not JavaScript).^[5] On large sites, it is common to find that generic anchor text like "click here" or "read more" dominates, with no exact-match or descriptive anchors pointing to priority pages.

Step 4: Optimise and Fix

Fixes should be batched by type and prioritised by impact. A sensible order:

1. Fix broken internal links first. These are causing active harm to crawl budget and user experience. Generate a report of all 4xx internal links and update or remove them. This can often be done with a find-and-replace in a CMS or via a developer script for dynamically generated links.
2. Update redirect chains to point directly to final URLs. Export all internal links pointing to redirecting URLs and update them to point to the canonical destination.
3. Link to orphan pages from relevant existing content. Match orphan pages to the most topically relevant pages in your site and add contextual internal links. Prioritise orphans that target valuable keywords or represent important content categories.
4. Restructure deeply buried pages. Add hub pages, improve navigation, or add links from higher-authority pages to reduce click depth for priority content.
5. Balance anchor text. For priority pages that lack exact-match or descriptive anchors, update existing links to use relevant anchor text.

Tools Comparison for Large Sites

For a deeper comparison, see our guide to internal link checker tools and our article on using Screaming Frog for technical SEO.

Measuring Success

An audit without measurement is just housekeeping. Tracking the right metrics before and after fixes tells you whether the work delivered ROI, and where to focus next.

Crawl coverage: Compare the number of pages Googlebot crawls (from GSC's crawl stats report) before and after fixing broken links and redirect chains. An increase in crawled pages suggests improved crawl efficiency.

Indexed pages: Check the Coverage report in Google Search Console. After linking to orphan pages and reducing crawl depth, you should see previously unindexed pages move into the "Indexed" status over the following weeks.

Organic traffic to targeted pages: For each page you identified as underlinked and added links to, track clicks and impressions in GSC over the 4-12 weeks following the change. Regular auditing combined with consistent fixing has been shown to boost organic traffic by 61% and cut bounce rates by 50%.^[6]

Orphan page rate: Run a re-crawl 6-8 weeks after implementing fixes and compare the orphan count. A declining orphan rate, combined with improving traffic metrics for those pages, confirms the strategy is working.

Common Pitfalls and Pro Tips

Do not try to fix everything at once. On large sites, a comprehensive fix list can run to tens of thousands of changes. Batching by issue type and priority keeps the work manageable and makes it easier to attribute traffic changes to specific interventions.

Noindex pages waste crawl budget too. Internal links to noindexed pages signal to Googlebot that those pages are worth crawling, even though they will never appear in the index. Audit for internal links pointing to noindex URLs and remove them.

Sitewide links dilute equity. Footer links, sidebar links, and navigation links that appear on every page technically count as internal links, but they pass much less equity than contextual body links. For priority pages that need link equity boosts, contextual links from relevant body content are far more effective.^[7]

Check canonicals before adding links. On large sites, multiple URL variants often exist for the same content (with and without trailing slashes, with parameters, with uppercase). Always link to the canonical version. Linking to a non-canonical URL means the equity flows to a page that then redirects elsewhere, which degrades the signal.

Use crawl segmentation for very large sites. Rather than crawling everything at once, segment by content type (blog, product pages, landing pages) and audit each segment separately. This makes issue prioritisation much cleaner and prevents your crawl reports from becoming unmanageable.

For more on link equity distribution and how to model it across your site, see our article on internal linking metrics that actually matter.

Frequently Asked Questions

How do you audit internal links on a large website?

Use a cloud-based crawler (Ahrefs Site Audit, Sitebulb, or Linki) to crawl all pages and export the internal links report. Identify orphan pages (no inlinks), broken internal links, redirect chains, and pages at crawl depth 4 or greater. Prioritise fixes by the SEO value of the affected pages, starting with broken links and orphans for highest-priority content, then work through redirect chains and depth reduction systematically.

What tools are best for internal link audits at scale?

For large sites (50,000+ pages), cloud-based tools are essential. Linki is purpose-built for internal link analysis and surfaces structural issues automatically. Ahrefs Site Audit handles up to 5 million pages per month. Sitebulb offers unlimited cloud crawling. Screaming Frog works well for sites up to around 500,000 pages if run on a server with sufficient memory. Google Search Console provides high-level internal link data for free, but with sampling limits and no redirect chain or orphan detection.

How does internal linking affect crawl budget?

Internal links are one of the primary signals Googlebot uses to decide which pages to crawl and how often. Broken internal links, redirect chains, and deeply buried pages all waste crawl budget on low-value requests. Fixing these issues concentrates crawl activity on your most important pages and ensures newly published content gets discovered and indexed promptly. According to Google's Gary Illyes, crawl budget equals crawl rate multiplied by demand, and is capped by the host load your server permits.

What are common internal linking issues on big sites?

The four most common issues are: orphan pages (no internal links pointing to them), broken internal links (404 or 5xx responses), redirect chains (two or more hops between source and destination), and excessive crawl depth (important pages requiring 4+ clicks from the homepage). Large sites also commonly suffer from generic anchor text, sitewide links overrepresenting low-priority pages, and internal links pointing to non-canonical URL variants.

How often should I run an internal link audit for a large site?

For actively publishing sites (new content added weekly), a quarterly full audit plus continuous monitoring of broken links is the practical standard. Sites that publish at high velocity (daily or more) benefit from automated monitoring that flags new orphans and broken links as they are created. Sites with infrequent publishing can run a full audit twice yearly, but should check for broken links after any significant URL restructure or CMS migration.

---
